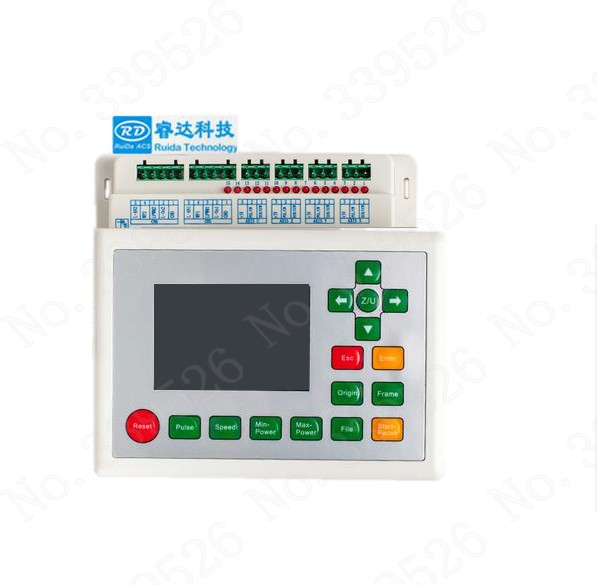

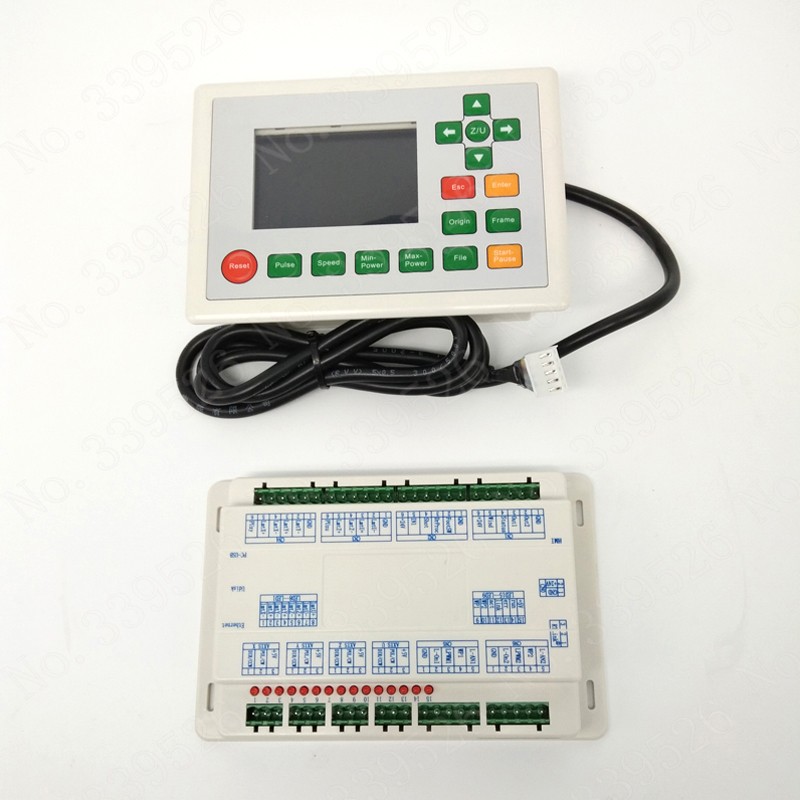

Color display 4 axis controller RDC6442G /RDC6442S

4-axis standalone laser engraving & cutting  controller RDC6442GTechnical Parameters: 1.Digital laser control signals:(1) TTL level output, 50 mA,drive capability(can set enable sig

  • Model: RDC6442G/RDC6442S-B(CE)

4-axis standalone laser engraving & cutting  controller RDC6442G


Technical Parameters:

1.Digital laser control signals:

(1) TTL level output, 50 mA,drive capabilitycan set enable signal polarity in software
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V

2.Motor control signal:common-anode output, drive capability 20 mA

   Motor control pulse frequency: Max.500KHZ

3.USB: Max. transmission rate 12M bps; The longest distance is 5 meters.

4.Network:Max. transmission rate is100M; Max. transmission distance is 200M.

5.Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse

6.Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability

(with follow-current protection)

7.Input:4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level



Functions:

· The controller has better resistance to high voltage and anti static ability

One-way 24V power supply(compatible with 36V, but not recommended)

Support all brands and capacities of U disks, quick and strong compatible copy ability

256M large-capacity file nonvolatile storage onboard, no bottlenecks limit for file size

 Capable of self-checking defective track, can format memory, good in fault tolerance

10/100M Ethernet + USB2.0 communication mode for optional

Multi-way general large-current IO, convenient for function extension

Display processing path, file preview

Display processing progress bar

Communication mode can be chosen automatically

The max. four-axis stepper/servo motor open-loop control

Two-way independent digital/analog interface, software can be adjusted respectively, convenient for double laser heads control; Dedicated RF laser control interface

Soft/hard limit coordinates protection for optional

Support linear/circular arc/B-spline interpolation function

Online update mainboard  program, convenient for maintenance and functions customization.

Auto-feeding, up and down, rotating engraving, left-right pushing plate, etc.

Support feeding line by line, slope engraving function

Support Power-off restart for engraving, work time preview (high accuracy to millisecond, the preview time is exact to the actual working time, the other vendor cannot realize)

Support machines backlash compensation function

Increase Z axis linkage function

System Power-on resetting or not resetting for optional

Support multiple positioning points logic

All manufacturer/user parameters can be backup and restored

Support double laser heads automatic layout and multiple virtual arrays automatic layout, leftover material function

Application area: laser cutting, laser engraving, laser welding etc.


Product Model : RDC6442G

                      6: the sixth generation controller

                      4: controller version

                      4: 4-axis

                      X: displayer type 1: TTF; 2:3.5 inch colorful screen; 3: 5.7 inch colorful screen; 4:7 inch touch screen

                     G: standard

Application area: laser cutting, laser engraving, laser welding etc.

Power:+24V, >2A

Temperature: 0~50 Celsius  humidity is not greater than 70%





Product Introduction

RDC644XG system is the latest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with anti static, resistance to high pressure. Based on 3.5-inch colorful screen human-machine operation system, with better operation interface and stronger functions, excellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable laser power control interface, strong compatible U disk drive program, multiple ways general /dedicated IO control.

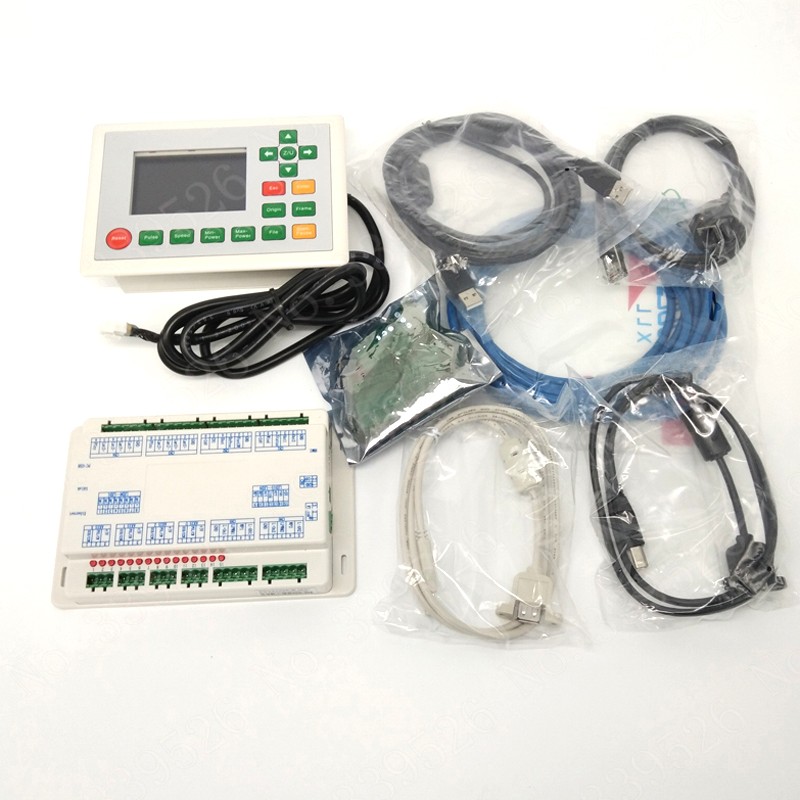

standart carton box
