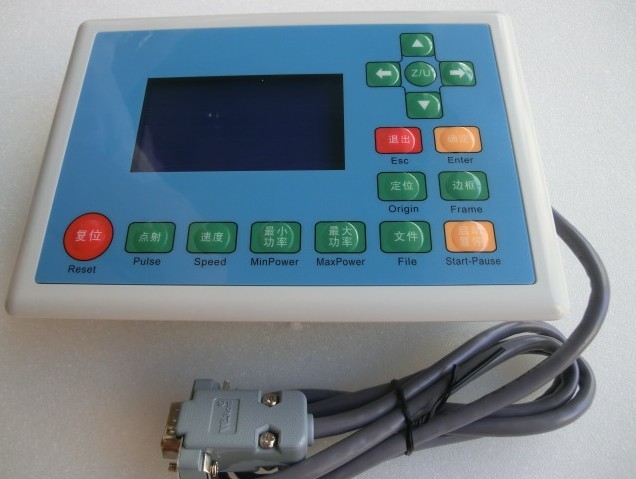

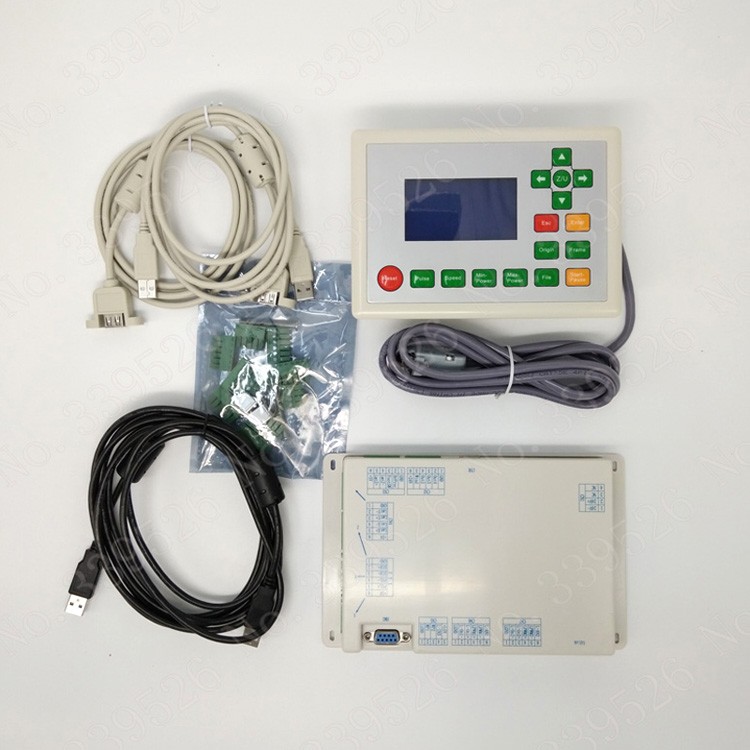

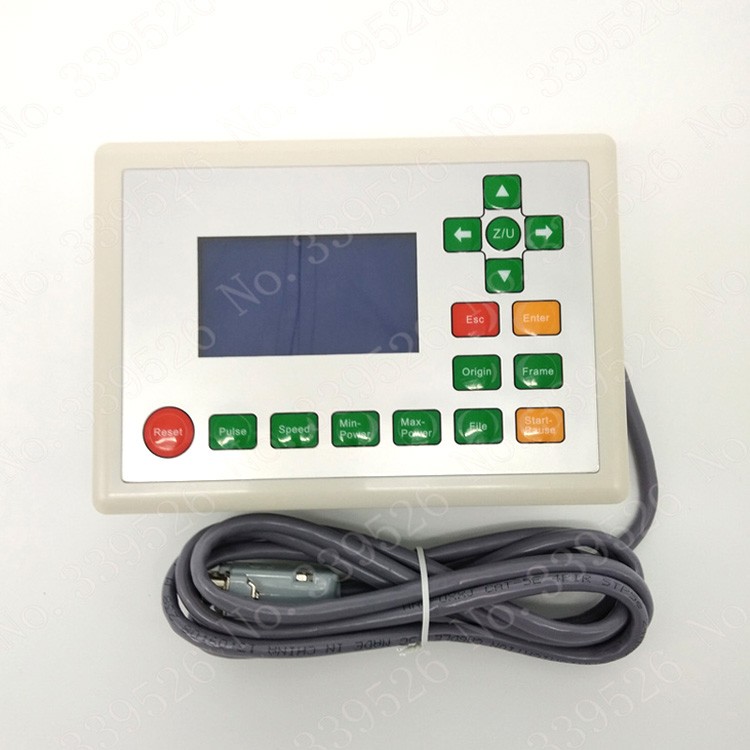

Co2 laser controller RDLC320-A
Advantages for RDLC320 - A laser engraving/cutting control card:The Board as a whole has better resistance to high pressure and antistatic abilityOne-way 24V power supply(compatible with 36V, but not
- Model: RDLC320-A
Advantages for RDLC320 - A laser engraving/cutting control card:The Board as a whole has better resistance to high pressure and antistatic abilityOne-way 24V power supply(compatible with 36V, but not
Advantages for RDLC320 - A laser engraving/cutting control card:
The Board as a whole has better resistance to high pressure and antistatic ability
One-way 24V power supply(compatible with 36V, but not recommended); can save the cost of machine manufacturer
Multi-way general large-current IO, convenient for function extension.
Support USB disks with all brand and capacities, and copy speed is 3 times than previous version system;
On-board 256Mlarge-capacity file storage, no longer has the bottlenecks limit for file size
Capable of self-checking defective track, can format memory, good in fault tolerance
Two-way independent digital/analog power interface, Software can be adjusted respectively, Convenient for double laser heads control
online upgrade mainboards program, conveniently for manufactures and customers to maintain and function customized ;
Online upgrade startup display (the startup display can be customized, then download in through software);
System comes with time system (can display date month year, hardware encryption algorithm is more stable and reliable);
Support work time preview (Preview Accuracy 100%, preview time and actual processing time correct to millisecond);
Support machine backlash compensation function;
Increase Z axes linkage function
Support hard limit
Perfect Power-off restart for Engraving function;
Support System start up Reset or not for optional (reset or not reset when starting up)
Support multi-origin Logics (can set multiple anchor point, and start work from different anchor points);
All manufacturer/user parameters can be backup and restore (means can set a group of parameter as manufacture defaulted factory parameter in the panel, at the same time these default factory parameter can be also one-key reset);
Main card size: 170 mm x120mm;
Power: +24V, more than 3A,
Temperature: -20 to 70 degree centigrade
Product Selection:
RDLC320G
3: The third generation products
2: Controller version number
0: Manufacture reserved Bit
RDLC320-A
Digital laser control signal
(1) Differential output, TTL level, 20mA Driving ability
(2) PWM frequency 2.5K ~ 100K for adjustable
(3) PWM duty ratio 2% ~ 98% for adjustable
Analog laser control signal 0 ~ 5V automatically tracing adjust
Motor control signal differential output, TTL level, 20mA driving ability
Motor control pulse frequency maximum 500KHZ
USB maximum transmission rate 12M, the longest distance is 5 meters
Line/arc/B spline interpolation accuracy +/- 0.5 pulse
4 –way general photoelectric isolation OC gate output, the maximum 600mA driving ability
4 –way General photoelectric isolated input , TTL level
standard carton box
