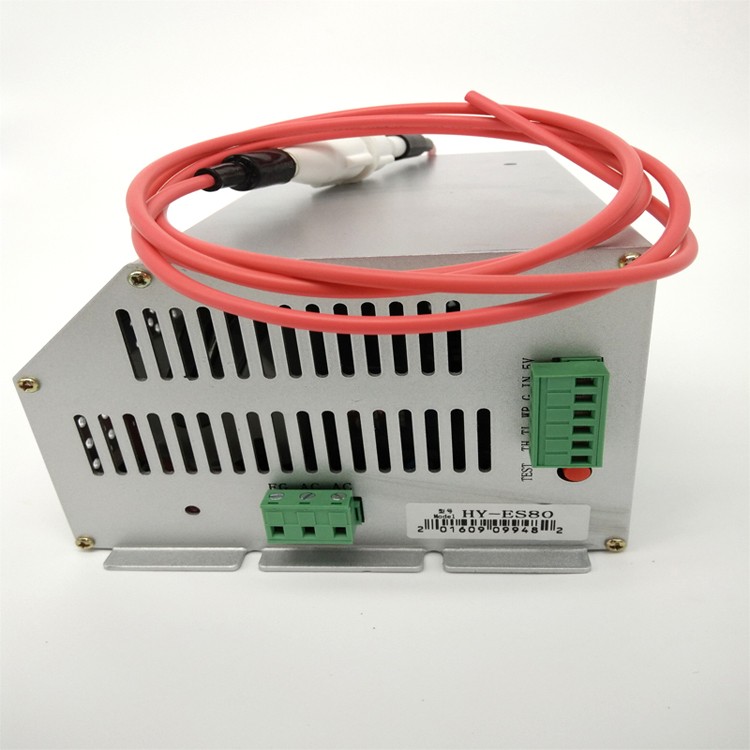

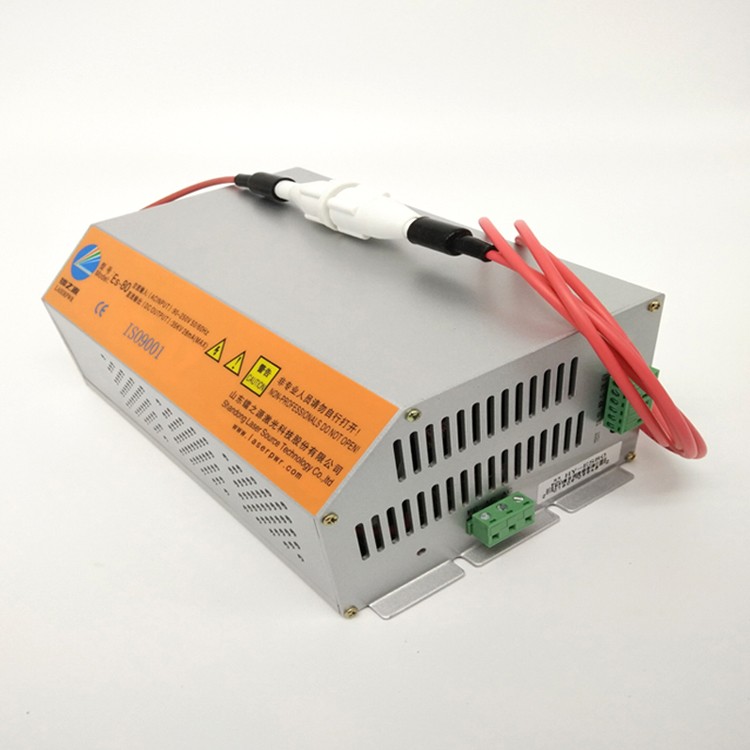

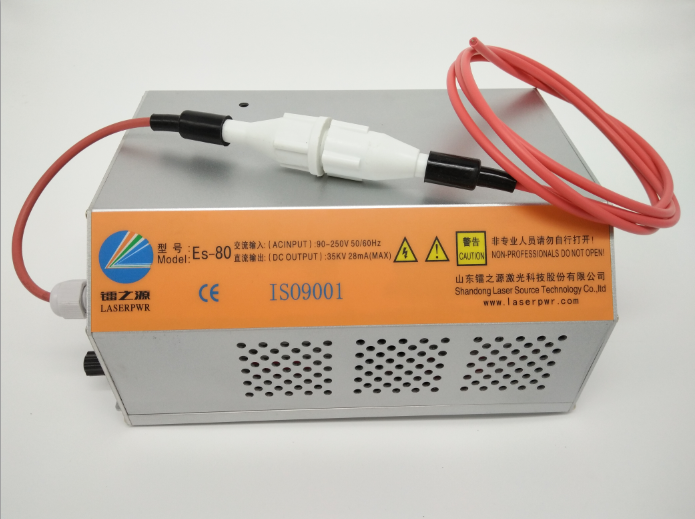

EFR laser power supply 80w 100w 150w

Es serial ?co2?laser power supply adopts zero-current half-bridge soft-switching circuit to make power supply with high efficiency, fast response speed, simple port control and high and low

  • Model: Es80, Es100,Es150

Es serial  co2 laser power supply adopts zero-current half-bridge soft-switching circuit to make power supply with high efficiency, fast response speed, simple port control and high and low level signals. It can control the start and stop of laser by TTL level. Plus abnormal protection switch to detect whether the external water, ventilation and so on.

Laser power adjustment can either input 0 to 5V analog signal, you can also enter the PWM signal to control the size of laser power.

Each power supply will be fully loaded high temperature 65 degrees 10 hours aging test, 7 seconds to open and shut down the power test 300 times





Es series of laser power supply features:

1. Active PFC function, AC90-250V wide input voltage range, universal, do not have to worry about the input voltage mismatch problem.

2. The cabinet adopts special design, the appearance is more stable, beautiful, better heat dissipation, better reflect the characteristics of industrial products.

3. Improved current control, the light is more stable, better compatibility, and better for all types of laser tube.

4. Compact size, suitable for installation in the cutting beam.

Compared with the E series power supply Advantages:

The whole system with voltage regulator, 110,220 V universal, can adapt to the global voltage range, to prevent the power supply due to voltage instability caused by damage, a significant reduction in power failure rate.

Chassis with precision mold manufacturing, chassis strength higher, better heat dissipation, scratch resistance.

Better than the E series of current control, the light more stable, better compatibility.


Items

Es80

Es100

Es150

In put

Input voltage

AC90-250V

AC frequency

47-440Hz

Max input power

500w

700w

900w

Max input current

6A

8A

10A

Output

Max output voltage

40kv

45kv

55kv

Max output current

28mA

32mA

38mA

Efficiency

when90% full load

Time no-failure

10000 hours

Response speed

1ms the time from output of switch signal to 90%of initial setting current

Pressure resistance

Input-output  ,input-chassis :AC1500v10mA 60s

environment

Work temperature (-10-40)degree Relative humidity90%

Cooling type

Forced air cooling

Dimension

L*W*H (mm

235*144*104

278*144*104

330*144*104

Weight

KG

2.15

2.45

3.2

Color

Silver gray


standard carton package
