itemDY10DY13DY20InputInput VoltageAC220VorAC110V( The order should be especially instructions )AC Frequency47---440HzMax Input Power450W550W1000WMax Input current5A8A10AOutputMax output Voltage3

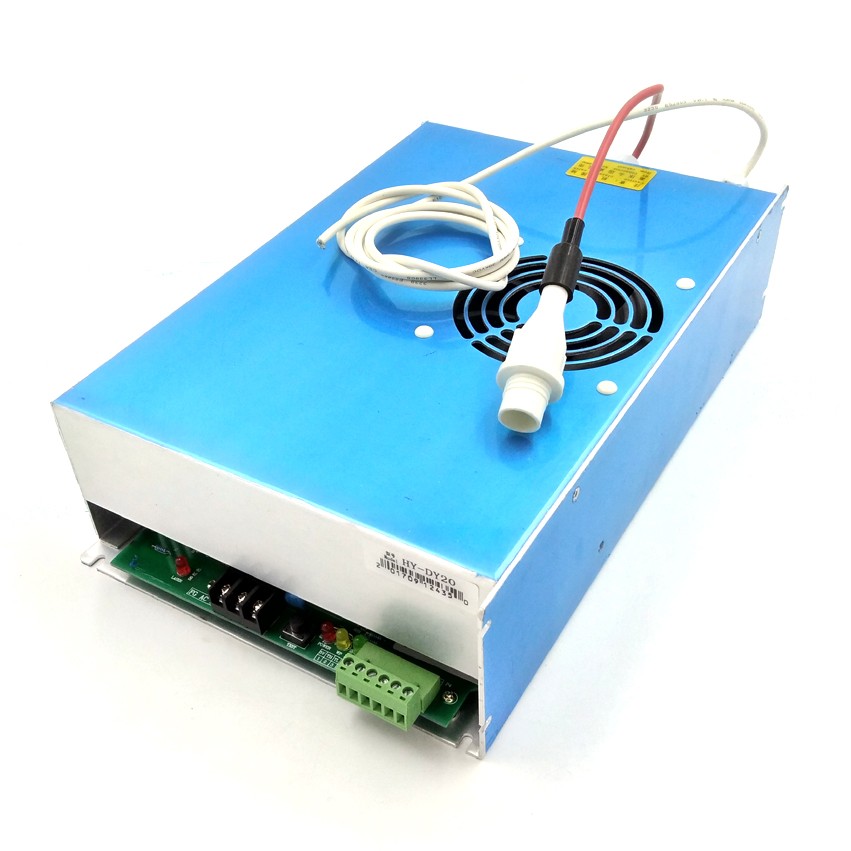

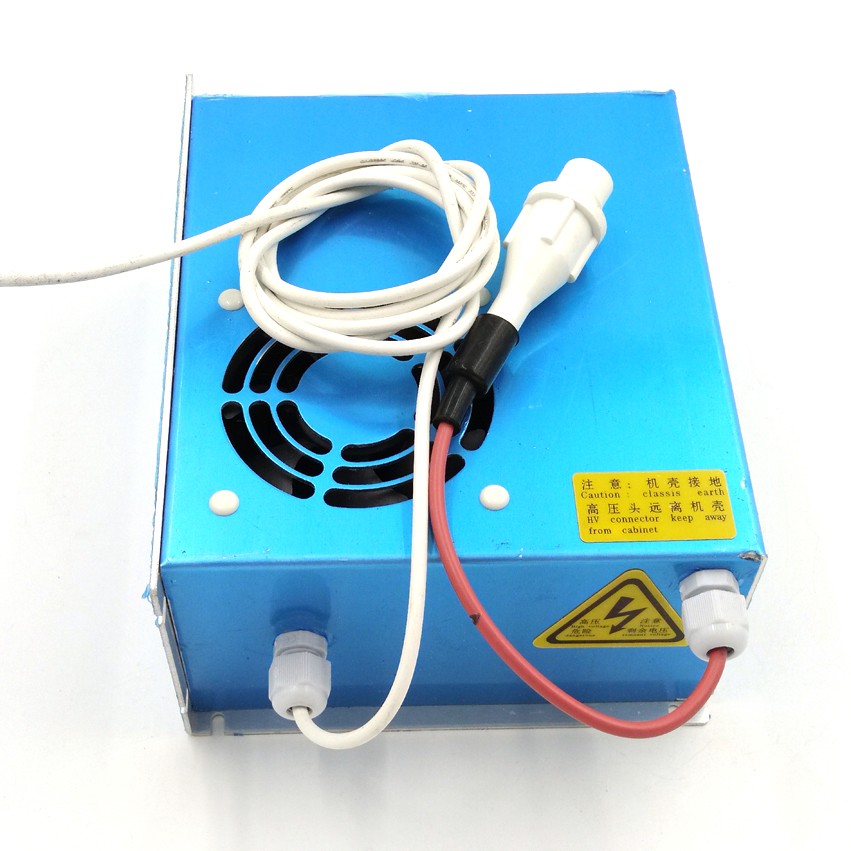

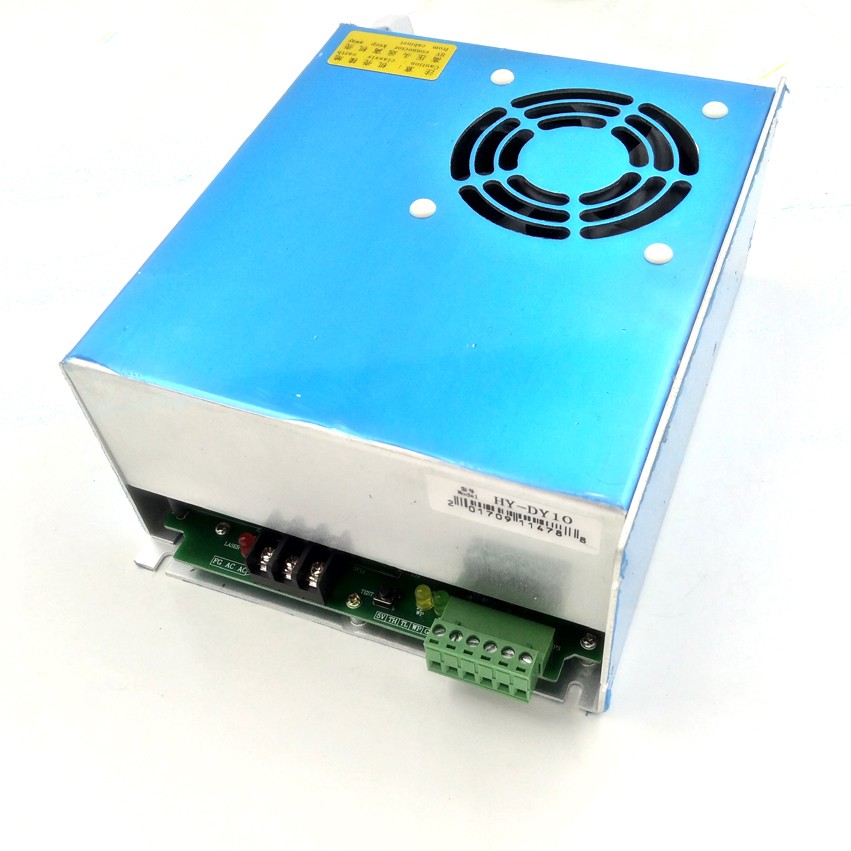

item | DY10 | DY13 | DY20 | |
Input | Input Voltage | AC220VorAC110V( The order should be especially instructions ) | ||
AC Frequency | 47---440Hz | |||
Max Input Power | 450W | 550W | 1000W | |
Max Input current | 5A | 8A | 10A | |
Output | Max output Voltage | 35KV | 40KV | 50KV |
Max Output current | 24mA | 28mA | 35mA | |
Efficiency | equal or more than 90%( load down ) | |||
Time no-failure | equal or more than10000h | |||
Response speed | equal or less than 1mS( the time from output of switch signal to 90%of initial setting current ) | |||
Voltage-resisting | Input-Output ,input-machine hull :AC1500V 10mA 60s; output cathode and machine hull connection | |||
Usage environment | Work temperature (-10~40) , Relative humidity :equal or less than 90% | |||
Cooling Type | The compulsive air cooling | |||

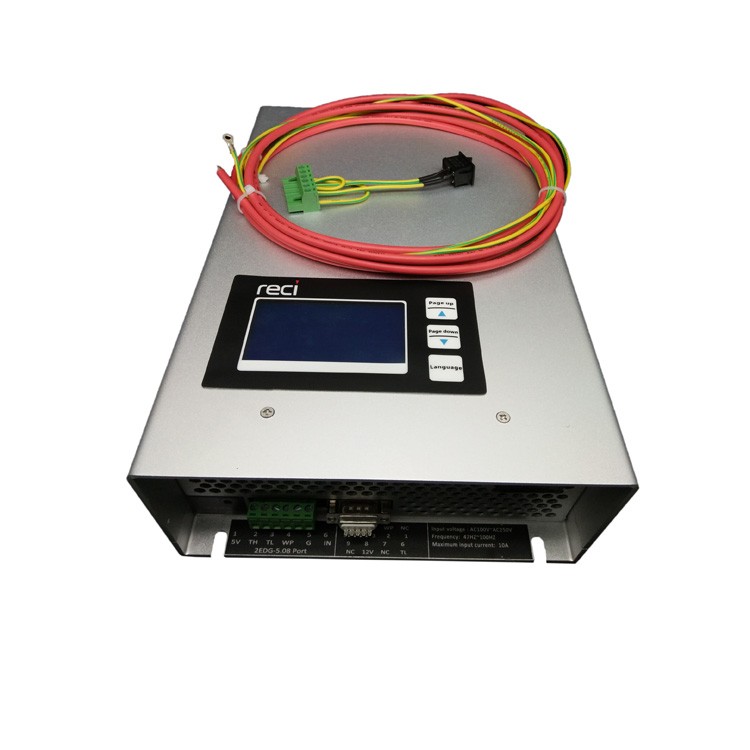

p12. Specifications
Specifications Technical parameters
Input voltage AC90V-AC250V
Input frequency 47Hz-100Hz
Max output current 32mA±1mA
Efficiency ≥89%
Environmental working temperature ：-20-40 degree Celsius
storage temperature ：-25 -60 degree Celsius
Humidity： 10-95 percent non-condensing
Control interface 1.DB9 2.2EDG-5.08
Dimension L*W*H=346mm×215mm×95mm
Cooling Convection cooled

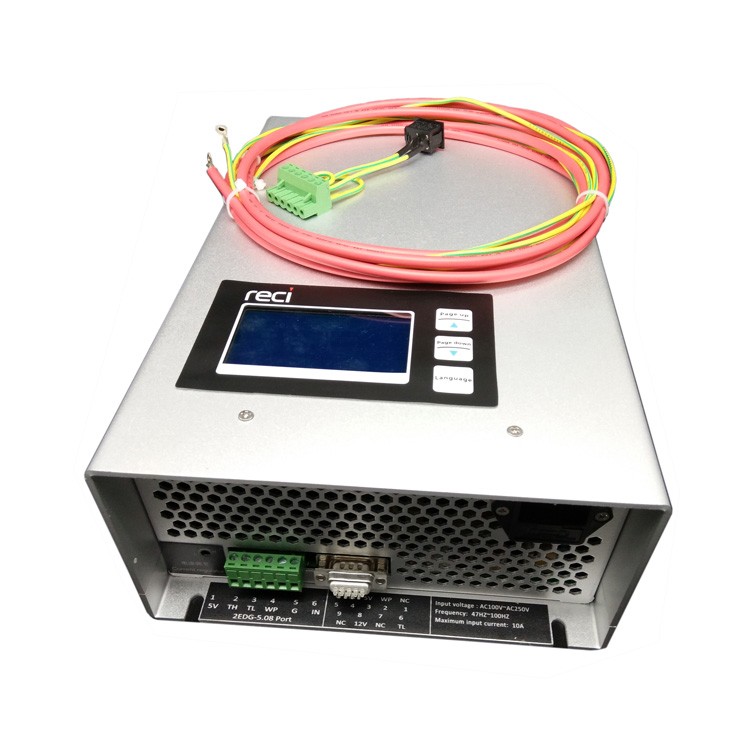

p14. Specifications
Input voltage | AC90V-AC250V |
Input frequency | 47Hz-100Hz |
Max output current | 32mA±1mA |
Efficiency | ≥89% |
Environmental working temperature | -20-40 degree Celsius |
storage temperature | -25 -60 degree Celsius |
Humidity | 10%-95% non-condensing |
Control interface | 1.DB9 2.2EDG-5.08 |
Dimension | L*W*H=346mm×215mm×95mm |
Cooling way | Convection cooled |

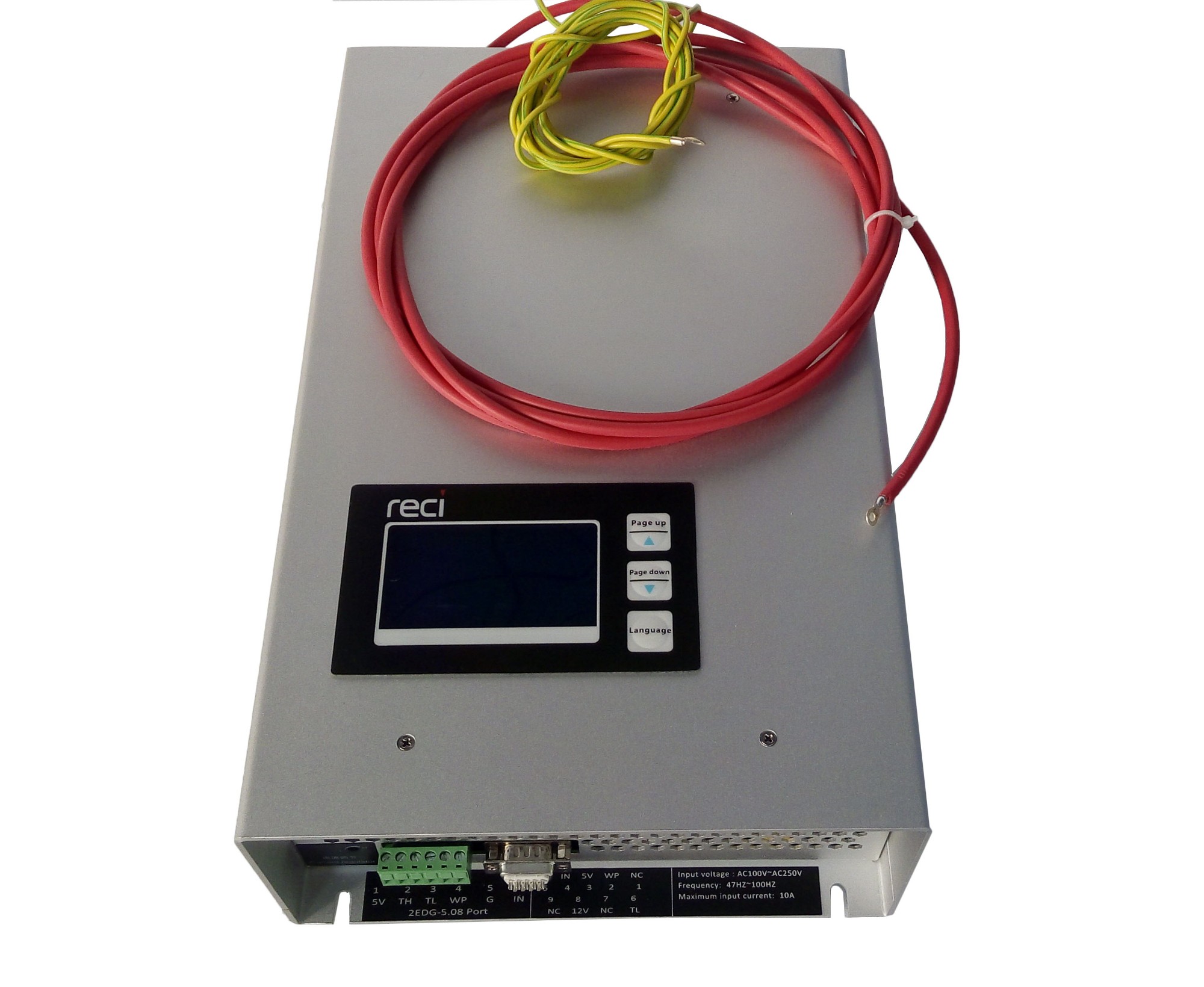

P16Specification
Specification | Technical parameters |
Input voltage | AC90V-AC250V |
Input frequency | 47Hz-100Hz |
Max output current | 32mA+-1mA |
Efficiency | ≥80 % |
Environmental | Working temperature :20degree to 40 degree |
Storage temperature :-25 degree to 60 degree | |
Humidity :10%-95% non-condensing | |
Control interface | 1DB9 2.2EDG-5.08 |
Dimension | L*W*H+346mm*215mm*95mm |
cooling | Convection cooled |
